Understanding the inner workings of the control systems on a mini excavator can help you be more efficient in your work and help boost your safety. The better the grip you have on these controls, the better you are at getting things done, enabling you to complete the work quicker, make fewer mistakes, reduce machine wear, and increase your machine life.
To properly operate an excavator, you need to understand the basic control systems like the joysticks, pedals, and hydraulic controls. Mastering these systems enables you to work efficiently and safely. Knowing how to use these excavator control is essential for any operator.
In this article, we’ll take a closer look at excavator control systems. We’ll explore everything from basic operations to advanced techniques to help you become a more skilled and efficient operator.
1,What Are the Basic Excavator Control?

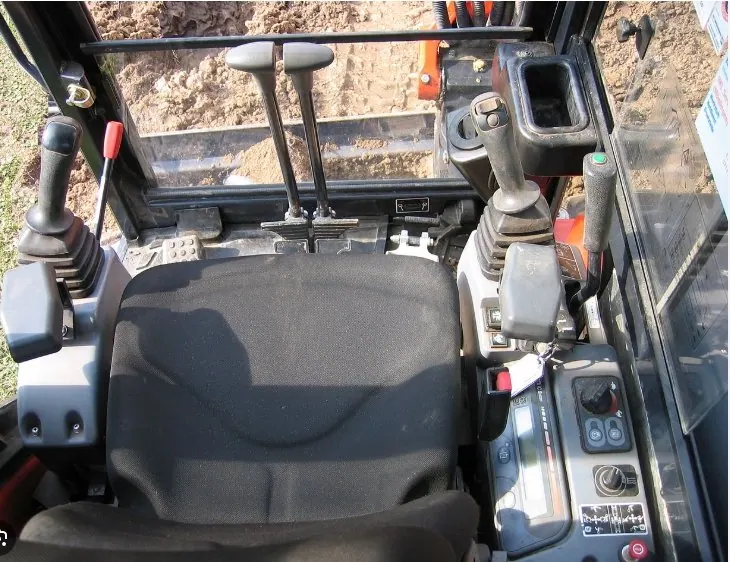

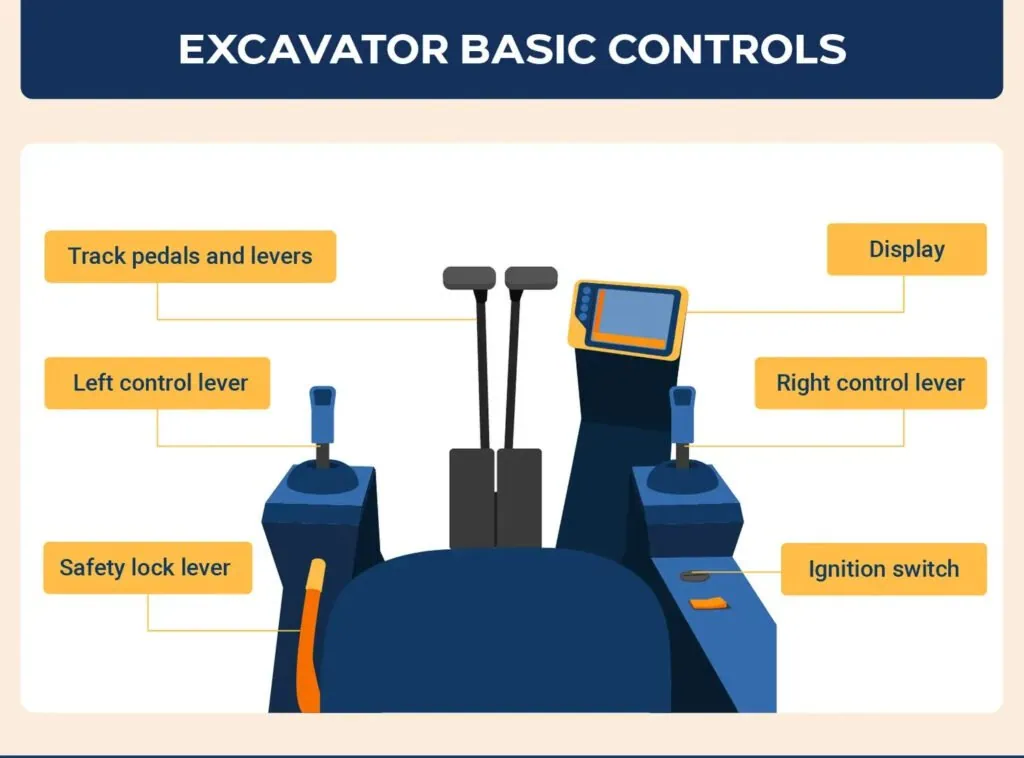

The basic excavator control include the joysticks, pedals, and hydraulic controls. Understanding the function of each part is crucial, as each one plays a vital role in the operation of the machine. Without mastering these controls, you cannot expect to achieve precision or efficiency in your work.
Excavator control primarily consist of joysticks for movement and digging, pedals for speed control, and other controls for fine-tuning the operation. Familiarizing yourself with these controls will help you maximize your machine’s performance.
The joystick is the central excavator control component on most modern excavators. By pushing it forward, the arm and bucket lower, and pulling it back raises them. Moving the joystick left or right controls the machine’s swing, enabling precise adjustments when working in tight spaces.
These pedals control your machine’s travel or movement. They control the speed at which you travel, and they control the direction in which you can go forward or backward. Mastering the use of your pedals helps you stay in better control when moving across rough terrain or moving in or out of more confined, tight areas. Your foot pedals allow for fine control of your machine’s speed, which is beneficial for moving over uneven ground, or when you’re doing something a little more sensitive, like grading.
In addition to these basic controls, there may be additional buttons, switches, or dials to control more advanced features. For instance, some machines may have controls for adjusting the angle of the bucket, setting the speed of hydraulic operations, or engaging specific auxiliary functions such as the thumb or grapple.
2,How Do You Operate the Joystick and Pedals of an Excavator?
The joystick and the pedals are your main tools, and the things that you need to master controlling in order to efficiently and safely do your work. The better you are at them, the more efficient you can be, and the safer you will be because you can better control the movement of your machine.
The joysticks control the movement of the arm, bucket, and swing, while the pedals control speed and direction. Getting familiar with these controls will help you operate your excavator with greater precision and efficiency.
The joysticks on an excavator are used to control the main functions of the machine, including the arm, bucket, and swing. To lower the arm and bucket, push the joystick forward; to raise them, pull it backward. Swinging the excavator left or right allows you to adjust the position of the boom, which is especially useful for clearing obstacles or shifting materials.
The pedals control the speed and direction of the machine’s travel. The pedal on the right side is typically used to move the excavator forward or backward, while the left pedal is often used to control the speed or fine-tune the machine’s direction. The speed of the pedal’s operation can be adjusted based on the amount of pressure applied. For example, pressing gently moves the machine at a low speed, while pressing harder increases the speed.
To move the excavator, press the right pedal to move forward and the left pedal to reverse. If you want to adjust the travel speed for precise tasks, such as positioning the excavator or working in tight spaces, use gentle pedal pressure to ensure smooth and controlled movements.
3,What Is the Role of the Swing and Arm Controls?
The swing and arm excavator controls are vital for precision when working with an excavator. These controls allow you to fine-tune the movements of the boom and arm, particularly in confined spaces or when performing tasks that require high accuracy.
The swing control allows the excavator to rotate, while the arm control adjusts the height and angle of the bucket. Proper use of these controls is essential for efficient and accurate digging, especially when working in tight or complex environments.
The swing control is typically used to rotate the body of the excavator. By rotating the excavator’s cab and boom, the swing allows for better flexibility when performing various tasks. The swing function is especially helpful when working in confined spaces where you need to reposition the machine without driving it to a new location. You can adjust the swing to an exact degree to achieve greater control and efficiency.
The arm control adjusts the height and angle of the boom, enabling you to reach various digging depths and angles. Using the arm control efficiently is essential for jobs such as trenching, grading, and digging in different elevations. It allows you to reach over obstacles or dig deep into the ground without repositioning the machine itself.
In many modern excavators, the swing and arm controls are integrated into the joystick, allowing the operator to control both functions with one hand. This reduces the need for multiple movements and increases the overall efficiency of the machine.
4,How Do You Effectively Operate the Bucket and Arm Functions?
The bucket and arm are the most critical components for performing excavation and material handling tasks. Mastering their operation can significantly improve the efficiency and accuracy of your work, helping you tackle a wide range of jobs with precision.
By controlling the bucket and arm, you can perform a variety of tasks such as digging, lifting, and moving materials. Proper excavator control of these functions is crucial for achieving optimal performance and minimizing wear on the equipment.
The bucket is your primary tool for digging and material handling. When you push the joystick forward, the bucket moves into the ground, scooping up material. Pulling the joystick backward raises the bucket, allowing you to move the material to a different location. The bucket’s angle can also be adjusted using the arm control to achieve a more effective digging angle, depending on the task at hand.
For tasks like lifting heavy loads, the arm and bucket must be carefully coordinated to ensure proper lifting techniques. Overloading the bucket or extending the arm too far can strain the machine and lead to equipment failure. It’s important to operate within the machine’s capacity to avoid damage and maintain a high level of performance.
When digging trenches or lifting materials, be mindful of the depth and angle of the bucket. The right positioning will ensure that the material is handled efficiently, minimizing spillage and reducing the need for additional passes.
5,How Do You Maintain the Excavator Control System?
Regular maintenance of your excavator control system is essential for ensuring the equipment operates smoothly and effectively. By staying on top of maintenance, you can prevent issues that may impact machine performance or safety.
Routine checks of the hydraulic system, control levers, and pedals are critical. These checks will help you spot potential problems early and maintain a safe, high-performance machine.
To maintain the hydraulic system, make sure the fluid levels are topped up regularly. Low hydraulic fluid can lead to sluggish operation or even damage to the system. Check the hydraulic lines for any signs of wear or leaks, as a failure in the hydraulic system can lead to significant damage and costly repairs.
Joysticks and other control components should be inspected for smooth operation. If you feel any resistance or notice sticking in the joystick movements, it’s time for maintenance. Cleaning and lubricating the joysticks can help prevent these issues.
Pedals should also be inspected for wear and tear, as they are subjected to constant pressure during operation. If the pedals feel loose or unresponsive, they may need to be adjusted or replaced. Routine maintenance can extend the lifespan of the pedals and ensure the smooth movement of the excavator.
6,What Are the Two Basic Types of Motor Controls?
Excavator control generally use two types of motor controls: analog and digital. Understanding the differences between these control types will help you make the best use of your excavator, especially when selecting a machine for specific tasks.
Analog and digital excavator control systems each offer distinct advantages. Analog systems are mechanical, while digital controls provide more precision and automation. Knowing which control type your excavator uses can improve your operation efficiency.
Analog control systems are typically simpler and rely on mechanical connections, such as cables or levers, to transfer commands. While reliable, these systems are less responsive and can be more difficult to adjust for precise tasks. They are, however, still common in older models of excavators or machines intended for less complex operations.

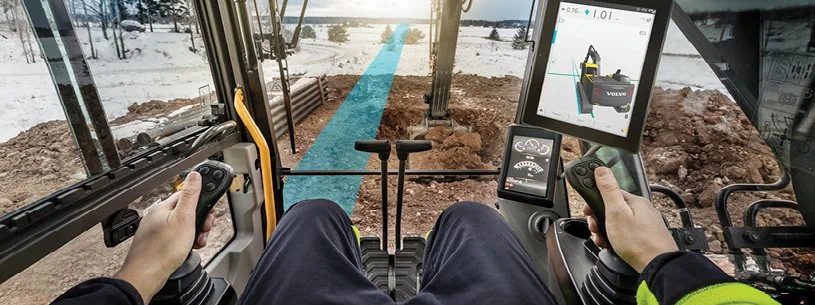

Digital excavator control systems, on the other hand, use sensors, actuators, and computers to regulate movements. These systems are more responsive, offering greater precision and ease of use. They allow for fine-tuning of settings, such as hydraulic pressure or speed, which makes them ideal for advanced operations where high precision is necessary.
With digital controls, you can adjust machine functions to optimize performance for specific tasks, such as fine grading, lifting, or digging in difficult soil conditions. Modern excavator control tend to use digital systems due to their flexibility and increased efficiency.
7,Are Backhoe and Excavator Controls the Same?
Although both backhoe loader and excavators are heavy equipment used for digging and material handling, their control systems can differ. Understanding these differences is essential if you work with both types of machinery.
Backhoe Loader and excavator controls are not the same, although they share some similarities. Excavator control typically have more complex control systems for greater precision and larger workloads, while backhoes have simpler systems suited for a variety of tasks.
Backhoe controls are often simpler, with levers and pedals used to operate the boom, bucket, and loader arms. These controls are designed for versatility, allowing operators to switch between different tasks with ease. Backhoes are often used for digging, lifting, and loading, but they are less specialized than excavators.
Excavator control, on the other hand, are more complex and are designed to handle more demanding tasks, such as deep trenching, large-scale lifting, and precise material handling. Excavators often feature joystick controls and digital systems, which allow for more accuracy and customization.
The complexity of excavator controls enables them to perform more specialized tasks, but it also means that operators need to be more skilled and knowledgeable in their operation.
8,What Controls Do CAT Excavators Use?

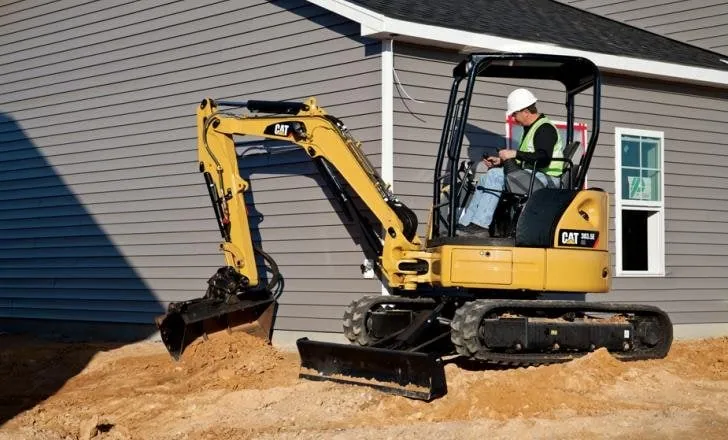

CAT excavators, one of the most popular brands in the industry, feature advanced excavator control systems. Understanding the specific controls used by CAT machines can help you operate them more effectively and safely.

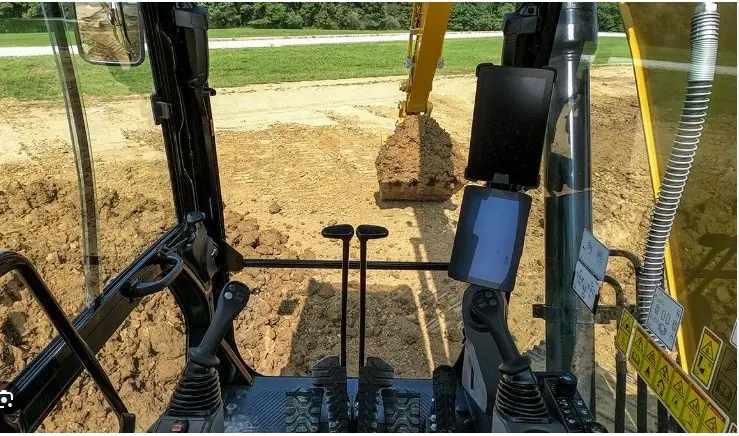

CAT excavators are equipped with state-of-the-art digital controls, including joysticks and customizable settings that allow operators to fine-tune machine performance to meet specific needs.
CAT excavators use a highly advanced control system known as the “CAT control system.” This system includes joysticks for primary movements, touchscreens for settings, and customizable hydraulic configurations. The digital system allows operators to adjust the sensitivity and speed of each control, ensuring that the machine operates smoothly and precisely.
The CAT control system also includes various safety features, such as automatic shut-off when the machine detects an unsafe condition or when a control is being used incorrectly. This helps prevent accidents and equipment damage, enhancing operator safety.
In addition, CAT excavators often feature an intuitive interface, where you can quickly access settings for fuel efficiency, performance, and maintenance monitoring. These tools can help operators maintain optimal performance and make adjustments based on the job at hand when used excavator control system.

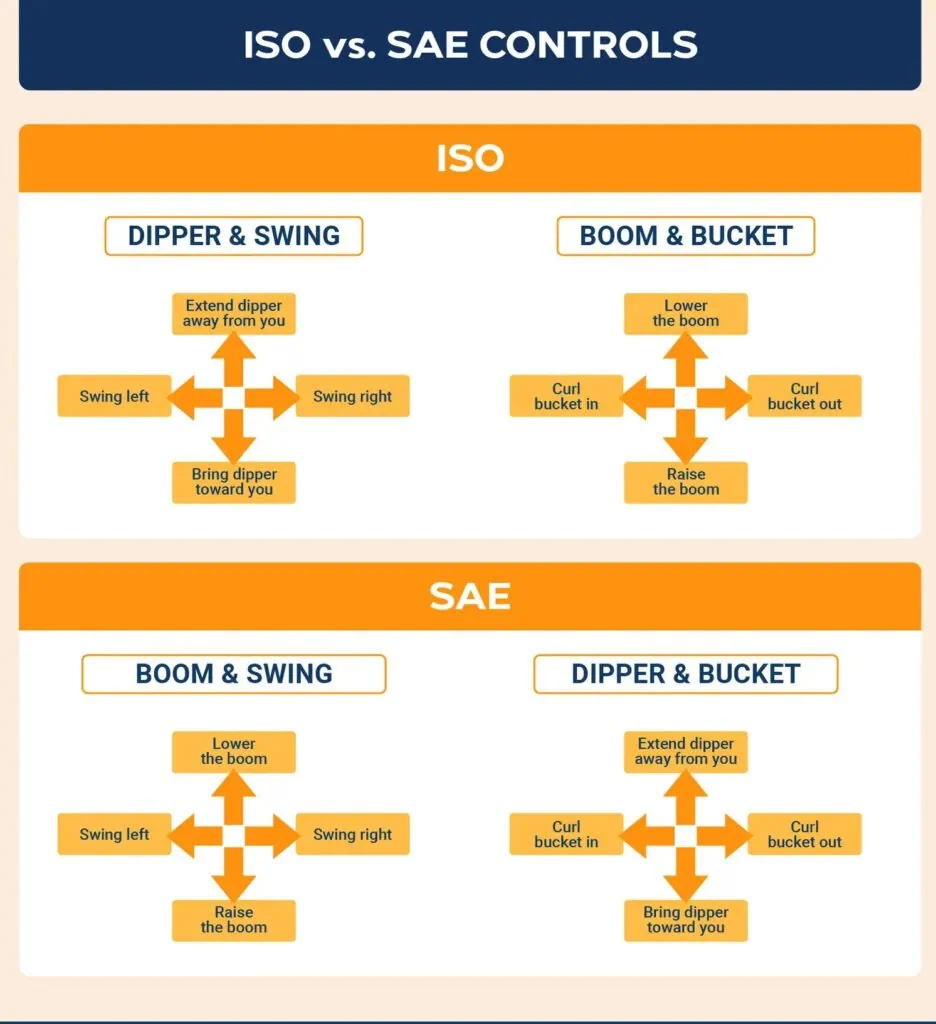

9,ISO vs. SAE: Excavator Joystick Control Patterns
No matter what size excavator you’re using, the controls will operate the same. There are two main excavator control patterns ISO, established by the International Organization for Standardization, and SAE, established by the Society of Automotive Engineers.
ISO is the more common pattern and is often referred to as “CAT controls” (because it’s what CAT machines often use) or “excavator controls.” SAE is a US standard and is often referred to as “John Deere Controls” (because it’s what John Deere machines often use) or as “backhoe controls.”
On newer excavator models, there may be a lever to swap the control pattern, depending on your machine. This may be located under the floorboard in the cab or behind a panel.

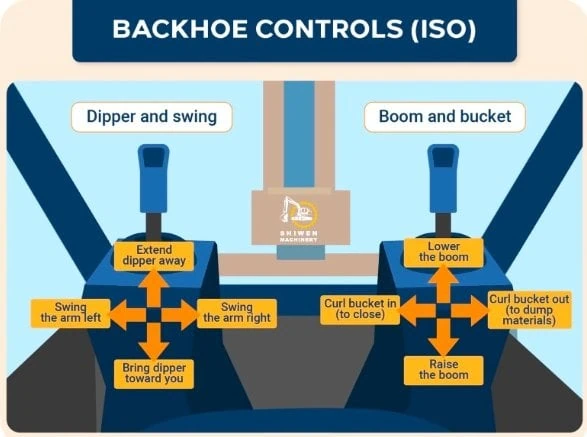

The difference between the two is that ISO controls use the right-hand lever to control the boom and bucket and the left-hand lever for the dipper (stick) and swing, but SAE controls use the right-hand lever for the dipper (stick) and bucket and the left-hand lever for the boom and swing. Your machine likely has a card that shows the pattern it uses.
Here are the patterns:
- ISO Controls
- The most common setup for operator controls, the ISO pattern is as follows:
- Left-hand lever (dipper and swing):
- Toward you: Bring dipper (stick) toward you
- Away from you: Extend dipper (stick) away from you
- Left: Swing left
- Right: Swing right
- Right-hand lever (boom and bucket):
- Toward you: Raise the boom
- Away from you: Lower the boom
- Left: Curl bucket in (to close)
- Right: Curl bucket out (to dump materials)
SAE Controls of excavator control:
The SAE pattern is different from ISO, using the left-hand joystick for the boom and swing, and the right-hand joystick for the dipper and bucket. Both control standards use the left-hand joystick for swing. The SAE pattern is as follows:
- Left-hand lever (boom and swing):
- Toward you: Raise the boom
- Away from you: Lower the boom
- Left: Swing left
- Right: Swing right
- Right-hand lever (dipper and bucket):
- Toward you: Bring dipper toward you
- Away from you: Extend dipper away from you
- Left: Curl bucket in (to close)
- Right: Curl bucket out (to dump materials)
Summary:
Mastering excavator controls, including joysticks, pedals, and hydraulic systems, is essential for efficient and safe operation. Regular maintenance and understanding the differences between control systems can help you get the most out of your equipment. By following these best practices, you can ensure that your excavator performs optimally, reduces wear and tear, and lasts for years to come.
